PRODUCT FEATURES:

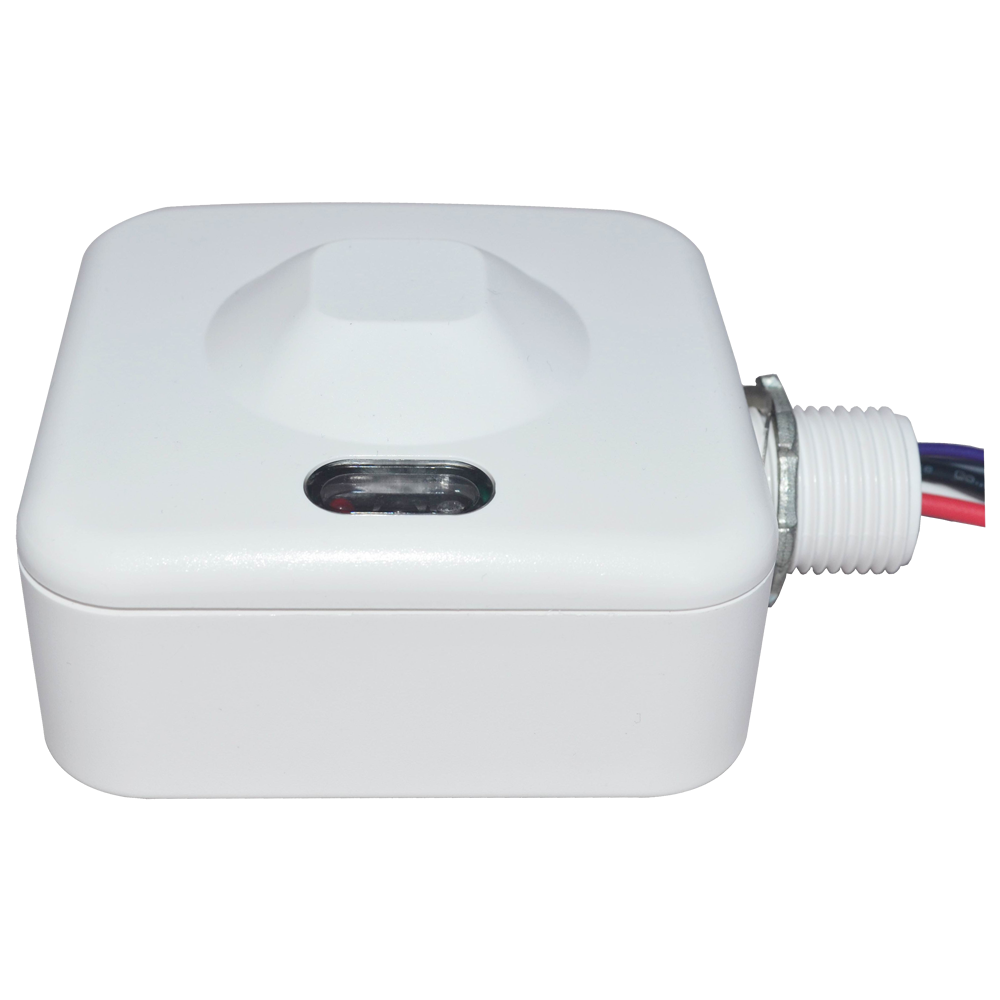

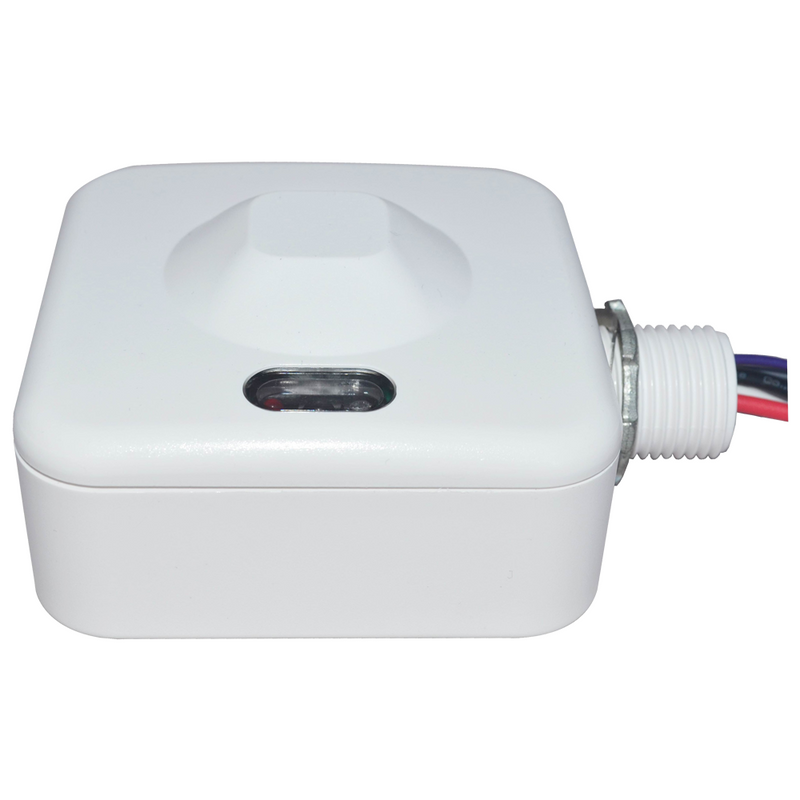

The BRI819P-B-D mounts in an indoor lighting fixture and provides multi-level control based on motion.

The BRI819P-B-D occupancy sensors are designed to mount to a light fixture and control one load in that fixture. They can be wired to control all ballasts in the fixture, or to control half of the ballasts, providing high/low lighting control. When motion is detected within the sensor's coverage area, the relay in the sensor closes, and lighting loads are automatically turned on.

• Model: BRI819P-B-D
• UPC: 799947613809
• Application: Linear High Bay
• Operating Voltage: DC 12-24V
• Microwave Frequency: 5.8 GHz ±75 MHz
• Mounting Height: 33FT (10m) Max
• Dim Control Output: 0-10V
• Temperature: -40°F-158°F (-40°C-70°C)
• DOWNLOAD DATASHEET

Looking for a different sensor model? Contact us today!
