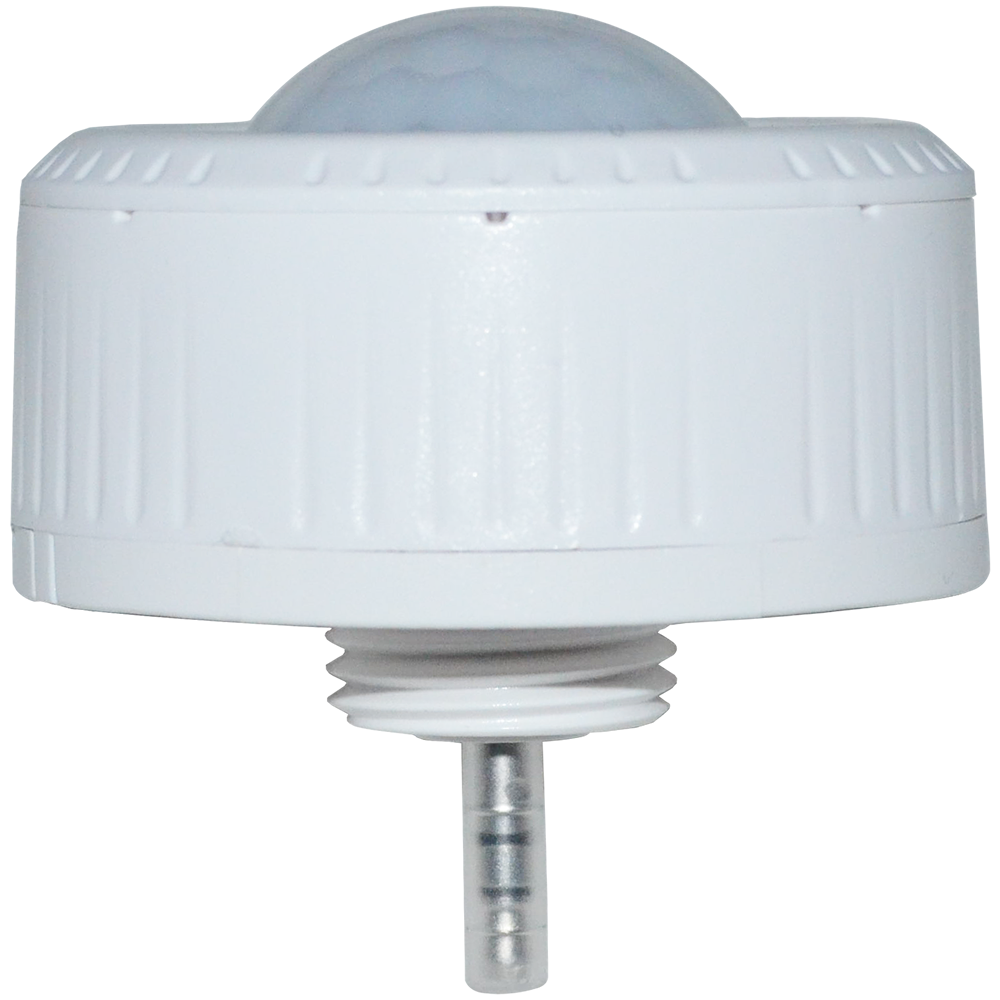

The ANT-6-4T mounts in an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution.  It controls 0-10 VDC LED drivers or dimming ballasts and is rated for wet and cold locations. All control parameters are adjustable via a wireless configuration tool capable of storing fixture setting information. (Remote Control Optional)

Model: ANT-6-4T
UPC: 799947613847

• Power Supply: 12V-24V DC, >30mA
• Dim Control Output: 0-10V, max. 25mA sinking current
• Remote Range: 50ft. (15m) indoor, no backlight
• Dim Control Output: 0-10V
• Detection Radius: 20%/50%/75%/100% (1-8m)
• Mounting Height: Max 40ft (12 meters)
• Time Setting: 10s/1 min/5 min/10 min/15 min/20 min/30 min/60 min
• Light Control: 24H/10LUX/30LUX/50LUX
• Temperature: -4°F-140° F (-20°C-60°C)
• IP65 Rated
